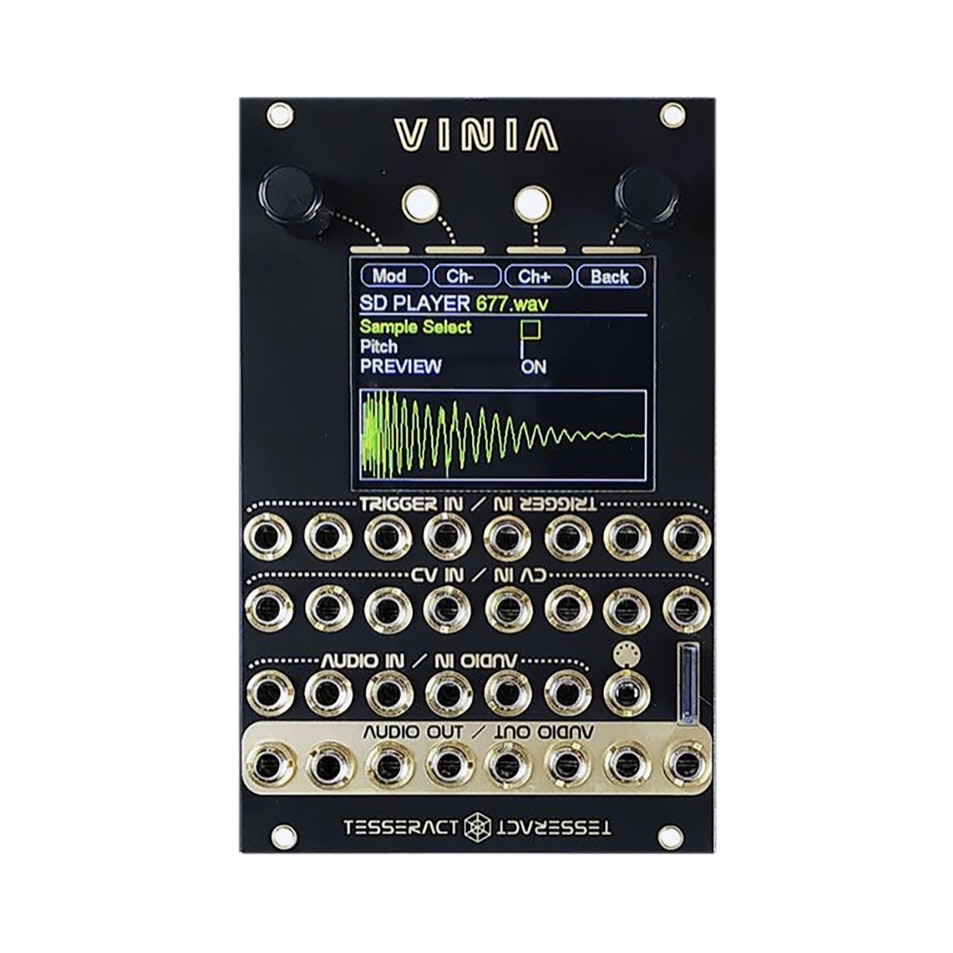

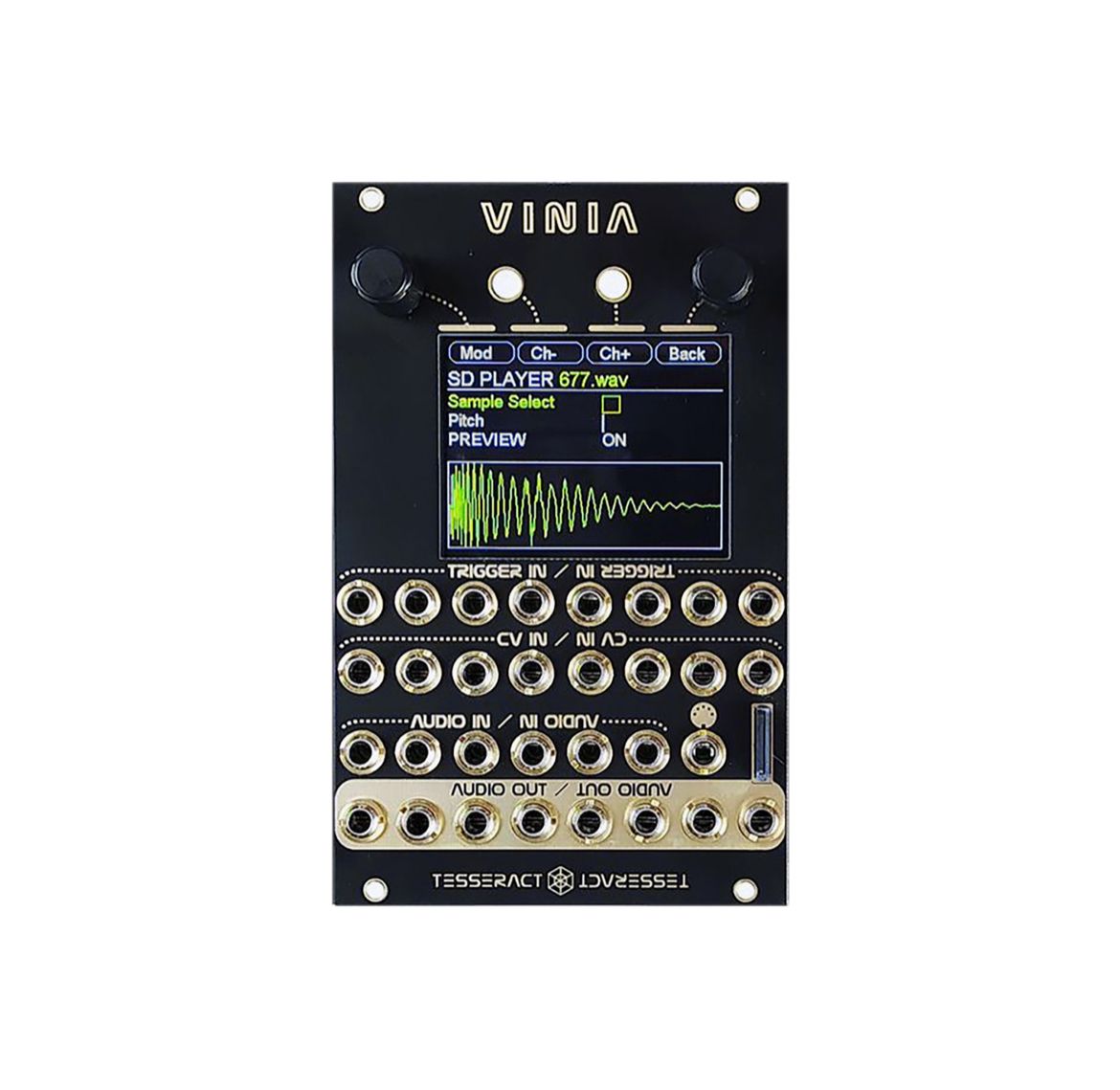

Vinia  Audio generator and processor module

Tesseract Modular

VINIA is a multichannel audio generator and processor module.

Each of the 8 channels can be independently configured as a multi effect processor, VCO, sample player, chord generator...and more.

Features:

• 16hp
• 8 Channels
• 6 Audio inputs (AC coupled, tracks 7 & 8 use inputs 1 & 2)
• 8 Audio outputs (DC coupled)
• 8 trigger inputs
• 8 CV inputs (-5V / +5V)
• Midi trs input
• 2,4” color display
• LFO, envelope, envelope follower and mini sequencer per channel

The module can be used both with jacks up or down.

Audio outputs are DC coupled so it can be used to generate complex CV modulation sources too. Audio inputs can be used to perform audio rate modulation in several parameters.

Great modulation capabilities, any modulation source can modify any parameter of any track.

Specifications

16 HP

+12V 228 mA

-12V 28 mA
