OCTA - Analog Drum Machine - Nano Modules

OCTA Analog Drum Machine

Nano Modules

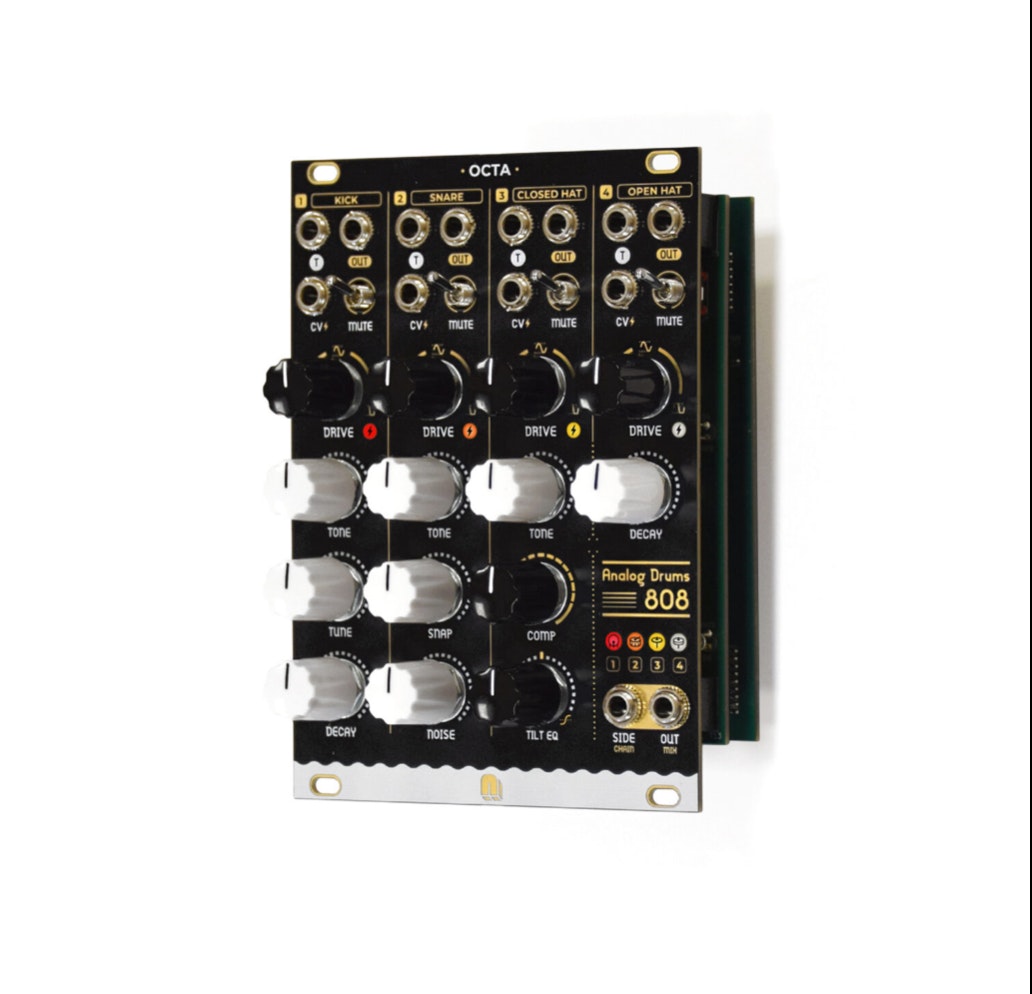

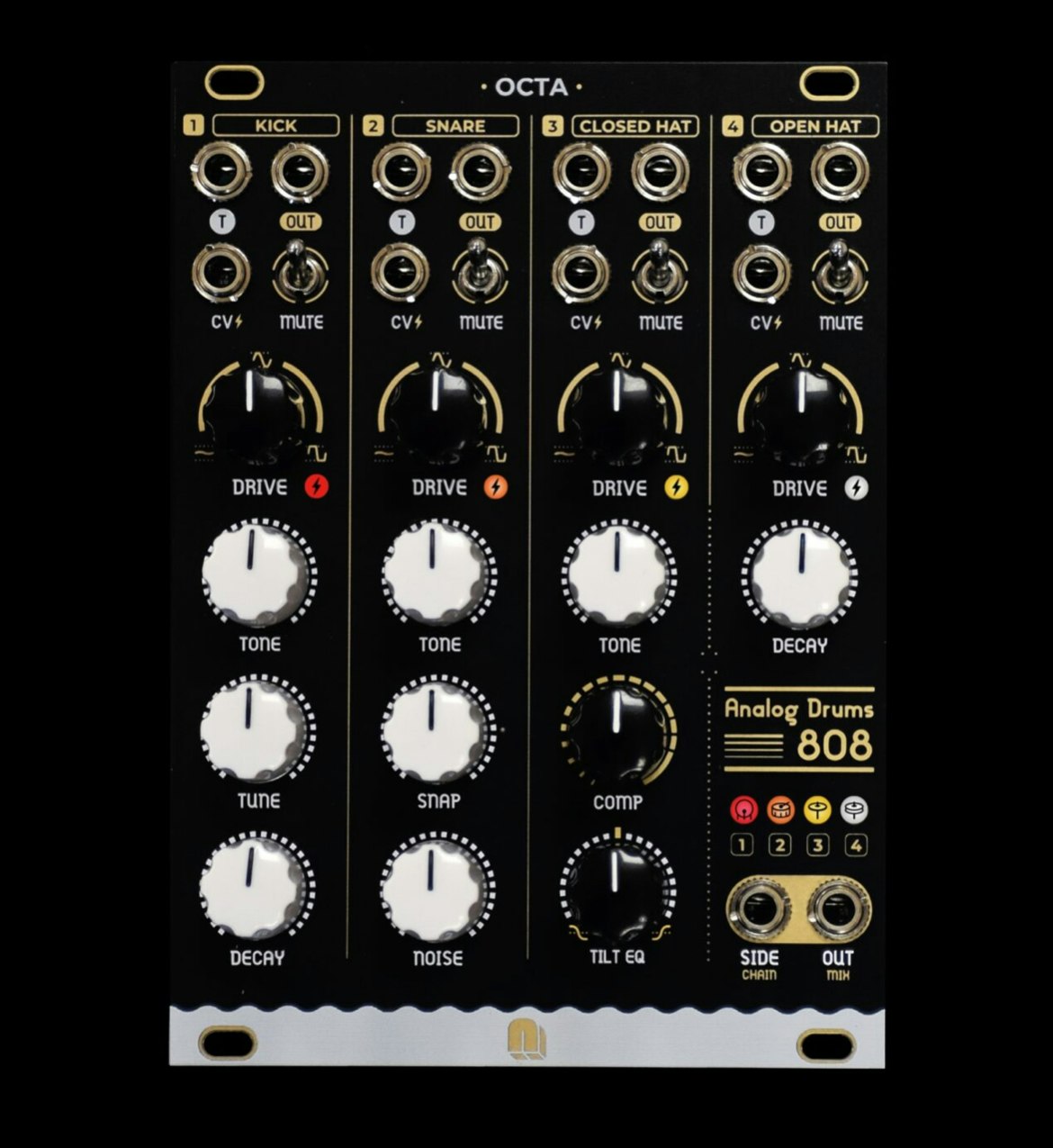

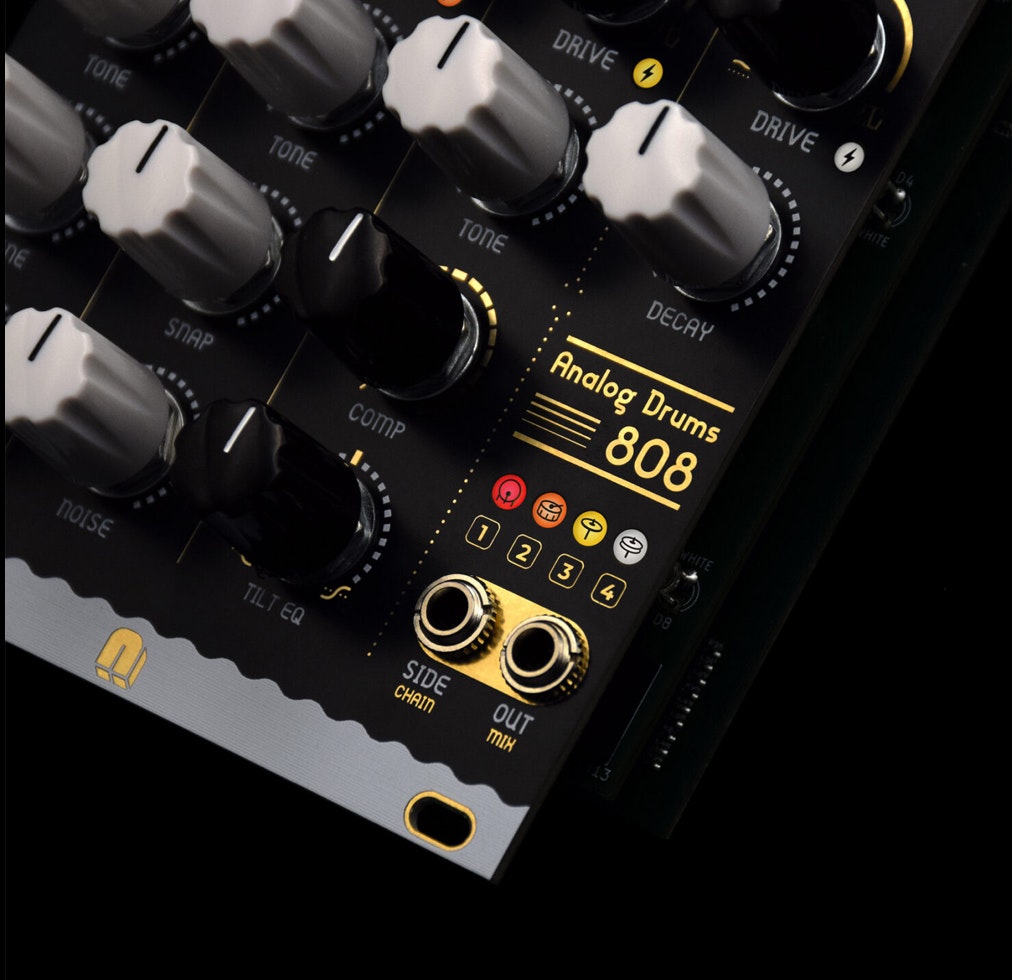

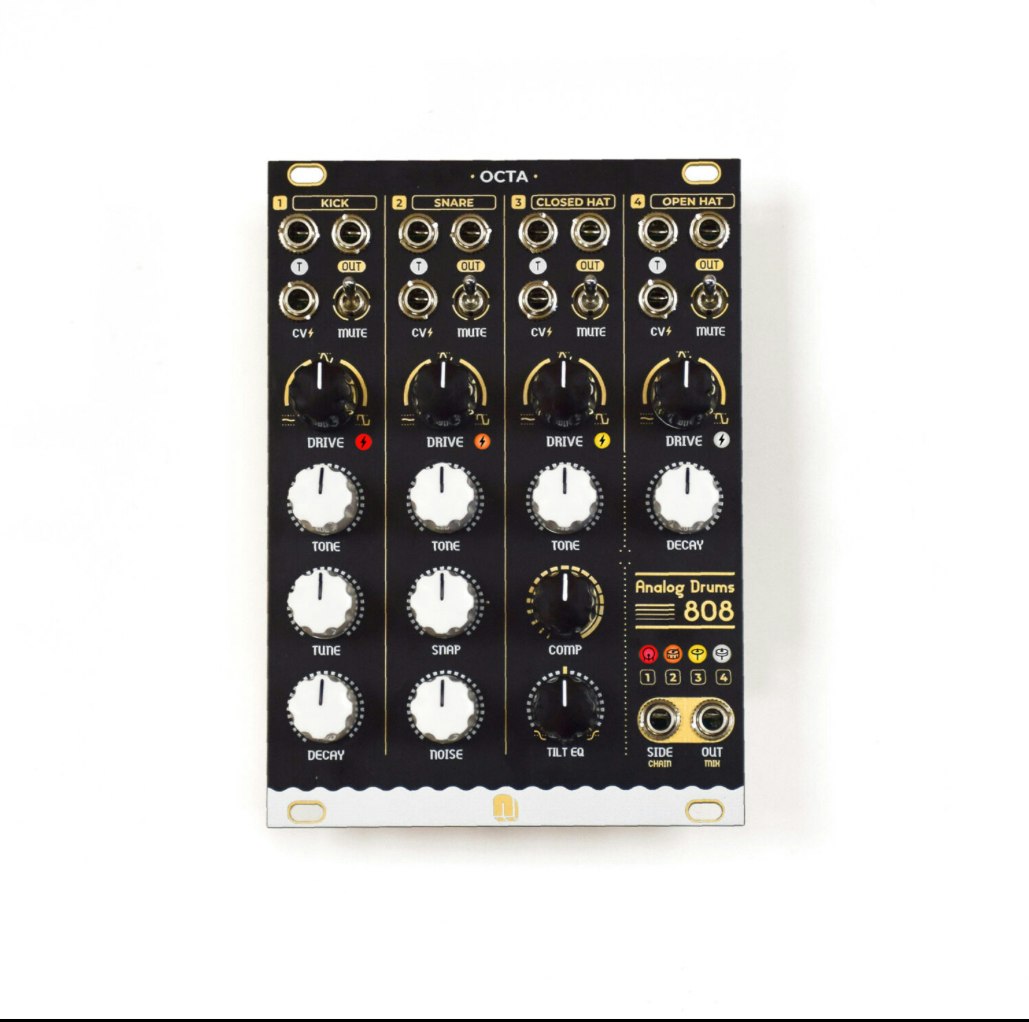

4-channel analog drum moduleinspired by the legendary TR-808sound, adapted and enhanced for Eurorack format. It delivers punchy, warm, and dynamic percussion with individual voice control, intuitive layout, and colored LEDs.

Key features:
• 4 independent analog voices: Kick, Snare, Closed Hat, Open Hat
• Channel controls: Drive, Tone, Tune, Decay (depending on voice)
• CV input for Volume / Drive on each voice
• Mute switch per drum sound
• Master Tilt EQ + Compressor
• Drum output for each sound.
• Main audio output + sidechain output
• LED indicators for drive & trigger inputs.

Dimensions 18HP – 91,44×128,5mm

Specifications

Dimensions 8HP – 40×128,5mm
Depth 20mm – Skiff friendly
Current 50 mA +12V / 30 mA -12V / 0 mA +5V
Output Signals ±5V
Impedance Input 10k – Output 10k
Materials PCB and Panel – FR4 1,6mm
