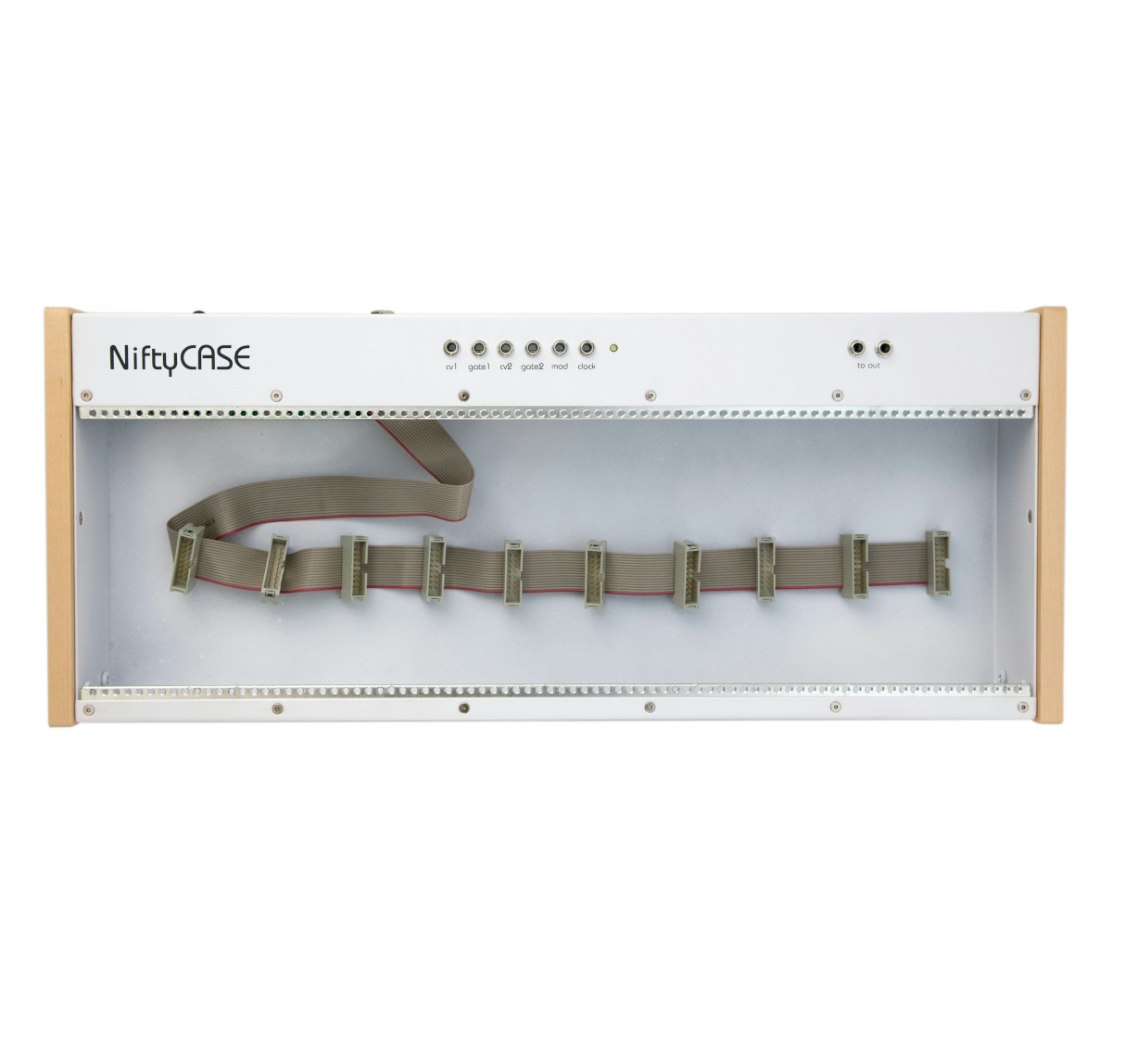

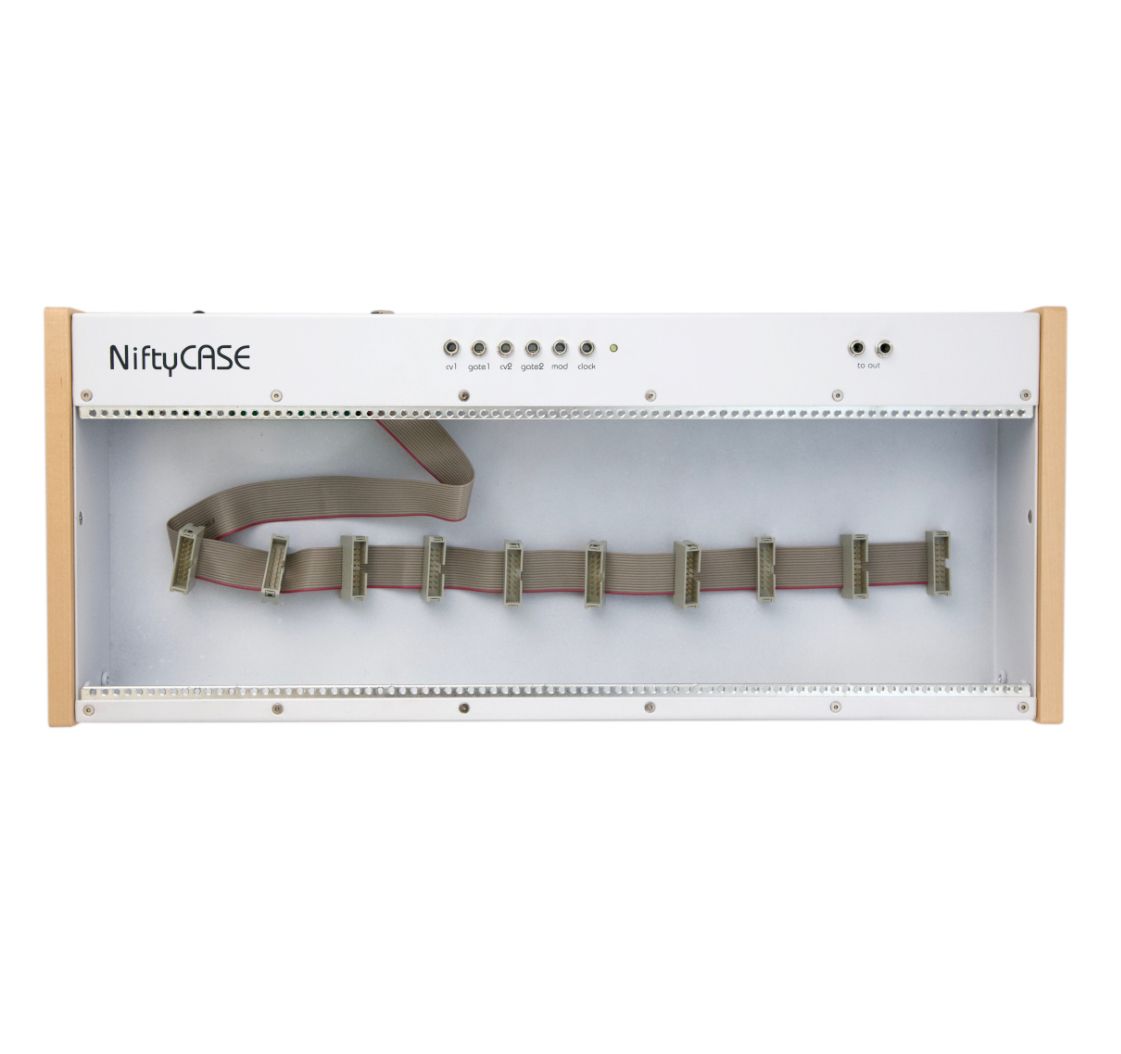

NiftyCASE - Powered modular case with MIDI to CV

Cre8audio

If you have modules you need a case. NiftyCASE is a good start with a really nice price. You get 84hp wide space for your modules, power, MIDI and outs.

Just mount the pieces you want in your case and start making some noise!

FEATURES

• Useable case area = 84hp

• Internal depth =  55mm

• Weight = 1.8kg

• 6.8cm x 44.6cm x 18.6cm

• Range of cv out 1 = 0-10V

• Range of cv out 2 = 0-10V

• Voltage output gate 1 - off =0 on =5（off = 0 on = 4.65）

• Voltage output gate 2 - off =0 on =5（off = 0 on = 4.65）

• Voltage output mod = 1-10V

• Voltage output clock - off =0 on =5

• Power output for modules

  • +12V - 1500mA peak output**

  • -12V - 500mA peak output**

  • +5V - 500mA peak output**

• 1/4” ts mono output on rear

• MIDI in via USB and 5 pin Din

• MIDI thru via 5 Pin Din and USB

• Included in the box

  • NiftyCASE

  • NiftyCASE switching power supply with blades for NA, EU, UK, and AU

Please click here for the NiftyCASE user guide
