Build your own dream synth with both polophony and aftertouch! More than just a full-sized 49 keyboard with 112hp of available module space.
Build your own dream synth with both polophony and aftertouch!

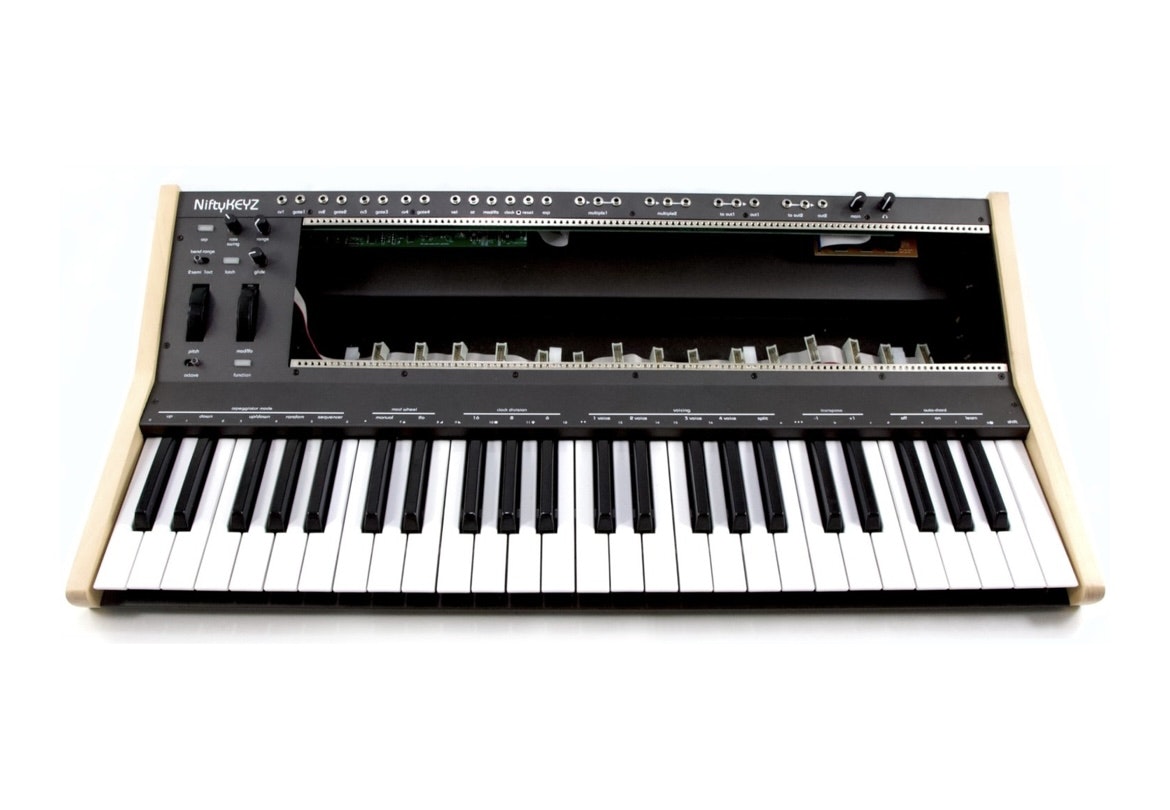

More than just a full-sized 49 key keyboard (with aftertouch), NiftyKEYZ has a whole load of space for a pile of whatever eurorack format modules you want to toss into it.
All told, NiftyKEYZ has 112hp of available module space and its newly designed power supply provides 1500mA +12v, 1000mA -12v, and 1000mA +5v power. Stuff NiftyKEYZ with modules and you’ll have a franken-synth that’s only limit is the bounds of your imagination (or lack thereof).
Features
Full size 49 key synth-action keybed with aftertouch
4 x CV + gate outs - can be split by keyboard zone and used polyphonic or monophonic modes
Useable case area = 112hp for eurorack modules
Power output for modules
+12V - 1500mA
-12V - 1000mA
+5V - 1000mA
Multi-mode arpeggiator
Auto-chord function
Transpose function
Glide control
Swing control
Multi-mode LFO
Clock - internal and external with divider
2x buffered mults

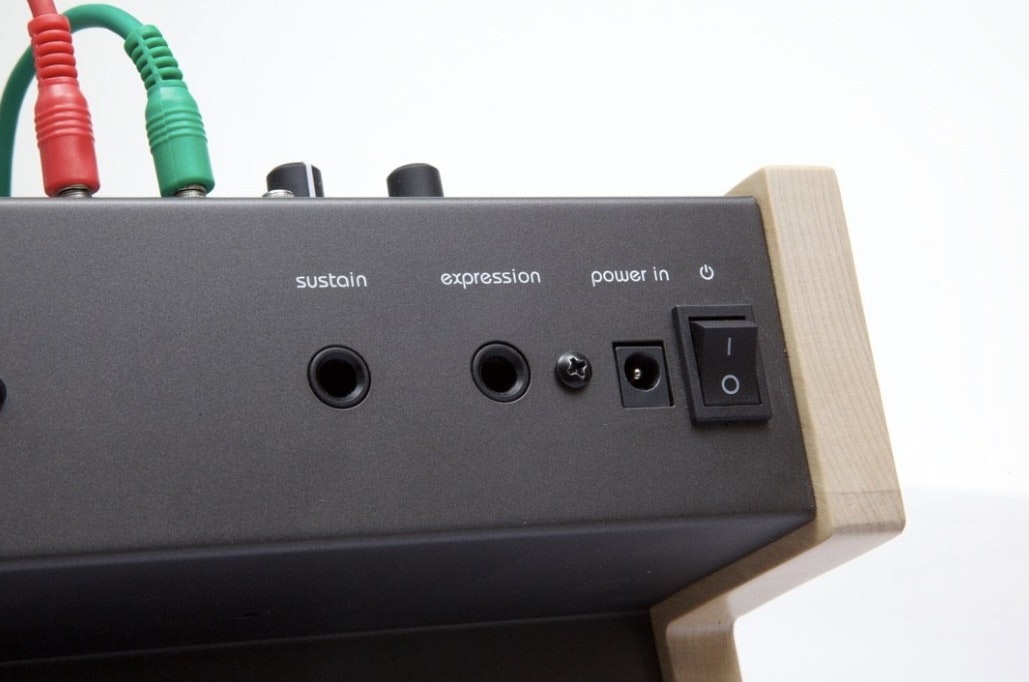

Sustain pedal input controls MIDI and gates
Range of cv outs 1 through 4 = 0-10V
Voltage output gates 1 through 4 - off = 0 on = 5(off = 0 on = 4.65)
Voltage output modwheel/LFO = 1-10V switchable to 0-5V
Voltage output pitchwheel = 1-10V
Voltage output expression = 1-10V
Voltage output velocity = 1-10V switchable to 0-5V
Voltage output aftertouch = 1-10V switchable to 0-5V
Voltage output clock - off = 0 on = 5
Input voltage range of oscillator = 0-10V
Two volume controllable 1/4” ts mono outputs on its rear (mirrored 3.5mm outs on top)
Dedicated control for headphone out with 1/4” headphone jack on its rear
USB MIDI class-compliant - no drivers needed

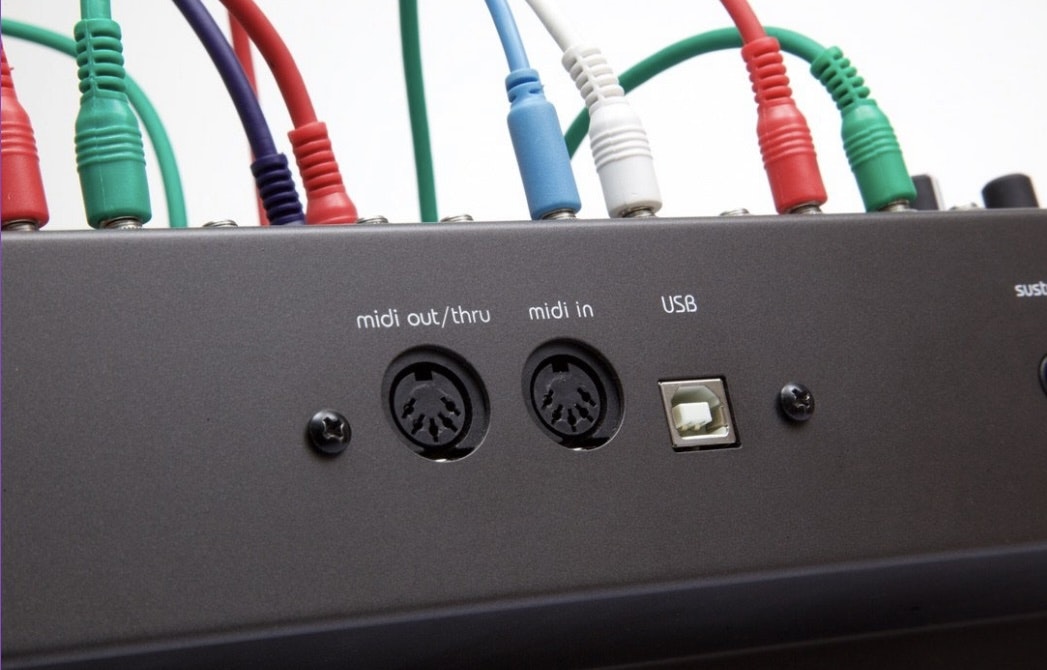

MIDI in via USB and 5 pin Din
MIDI thru via 5 Pin Din and USB
Dimensions = 70cm x 36cm x 13cm
Included in the box
NiftyKEYZ
NiftyKEYZ switching power supply with blades for NA, EU, UK, and AU
