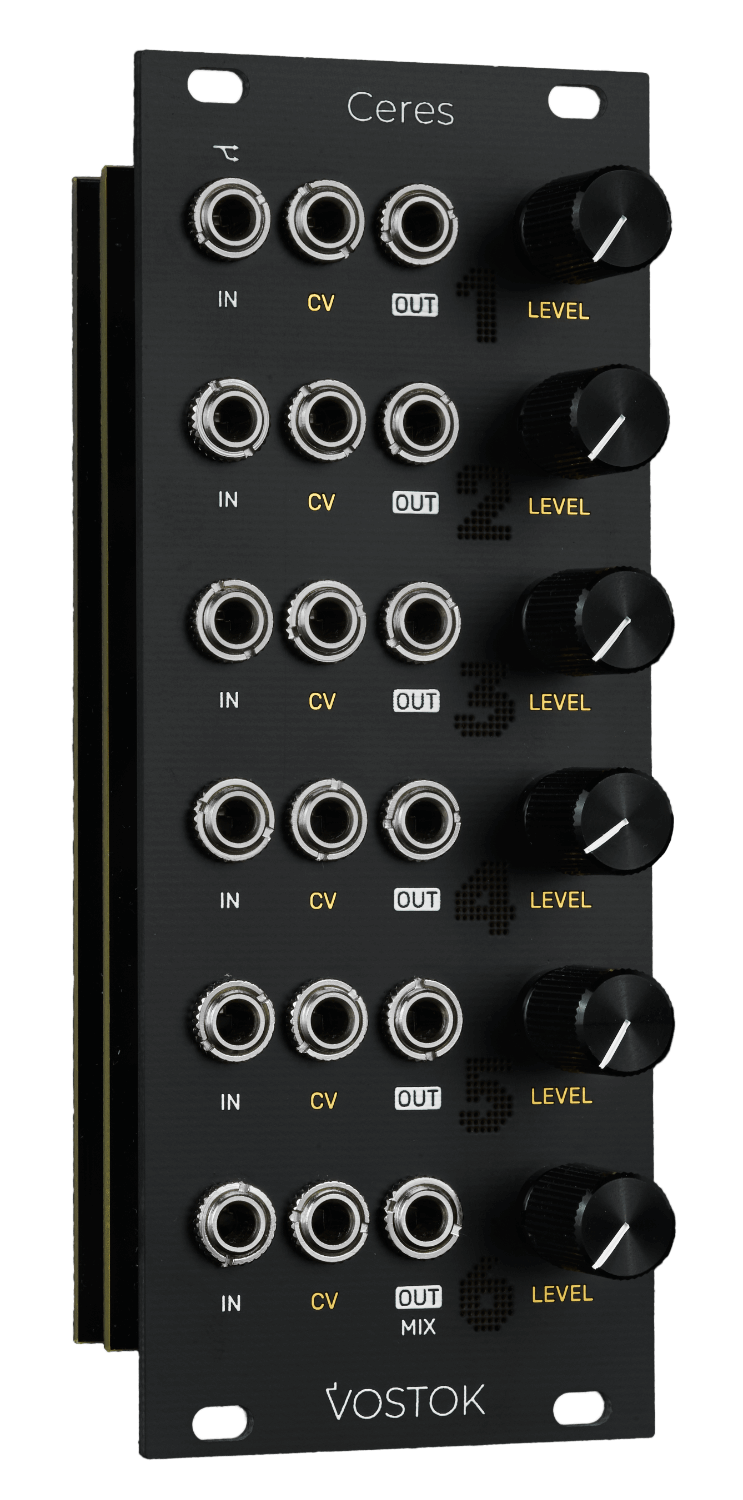

Ceres - High-Class Linear VCA & Eurorack Mixer

“You never have enough VCAs”

The combination of daisy-chained inputs and mixed outputs achieves a vast range of possibilities. Several CV signals can modulate a unique source with every output mixed back at the final stage to create new waveforms and open the door to experimentation.

Ceres User Manual - Online (Vostok Instruments)

Features

• Six channels
• Low noise analog VCA circuits
• Precise Linear response
• Quiet signal path
• Daisy-chained audio inputs
• Mixing stage on channel 6

Specs

• Size: 10HP
• Current draw: +/-12V: 50mA, +5V: 0mA
• Depth: 30mm (including power cable)
• Unity gain CV level: 5V
• Input Impedance: 100kΩ
• Output Impedance 1kΩ
