ADDAC103 T-Networks - 4 analogue drums

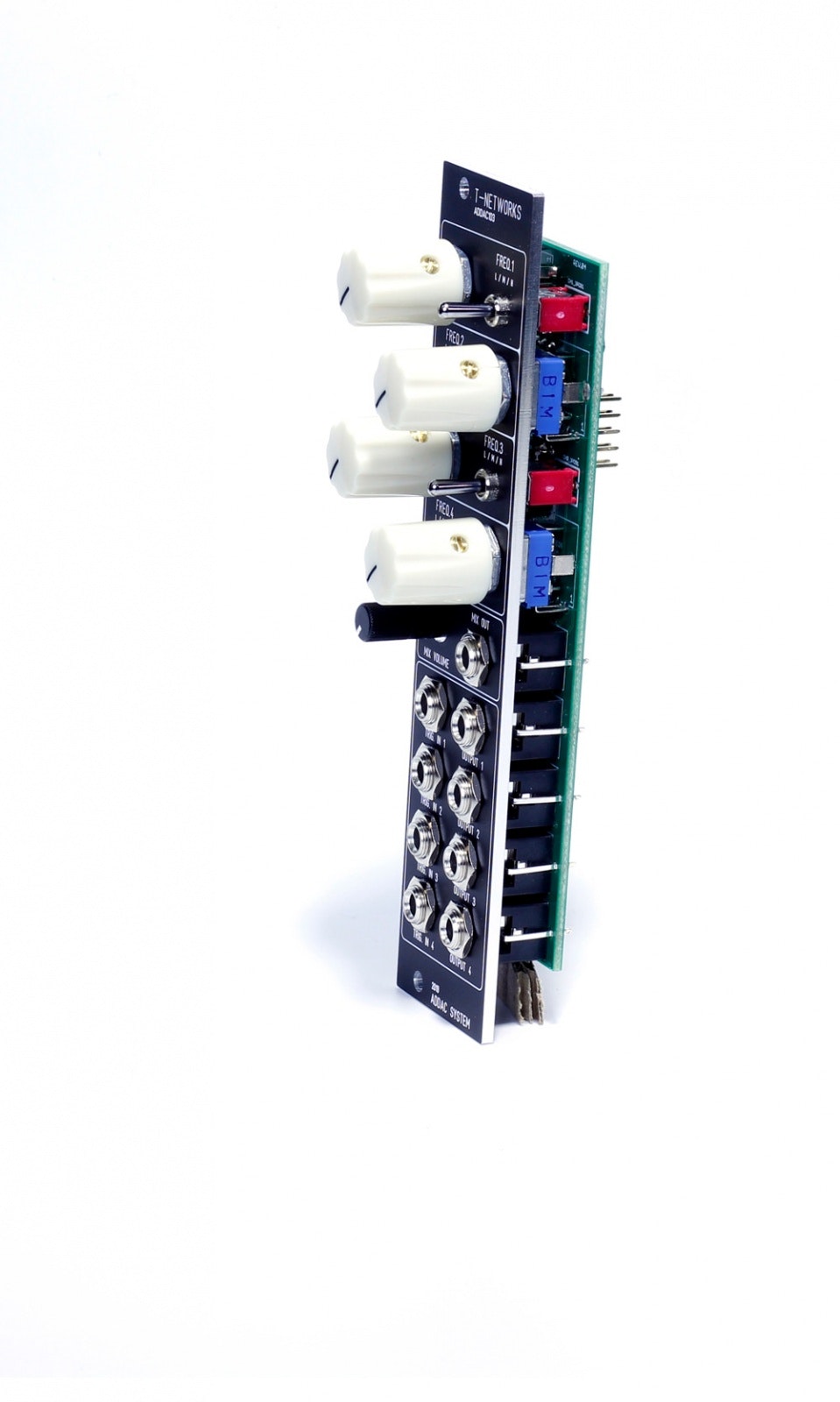

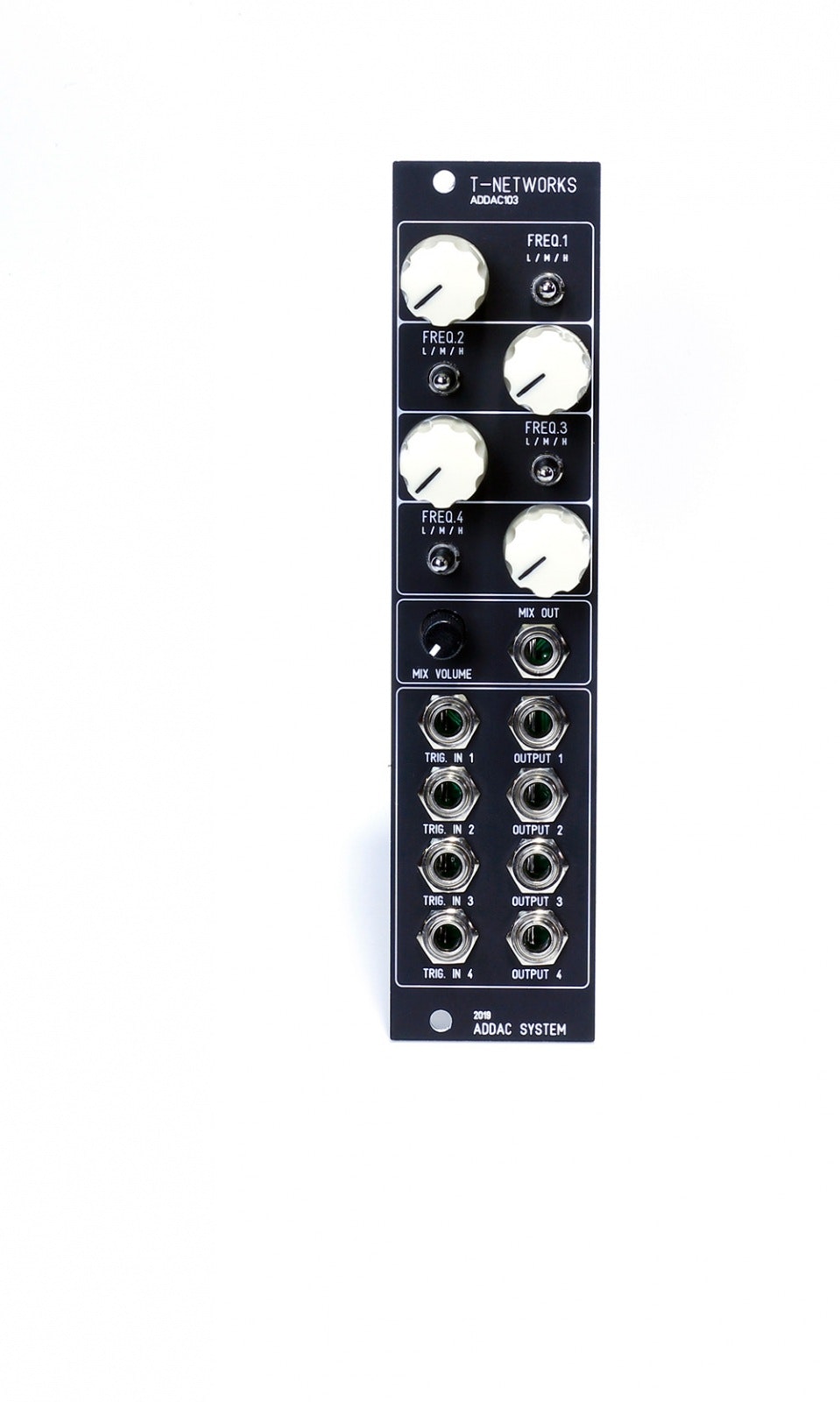

ADDAC103 T-Networks

4 classic vintage analogue drum voices

Inspired by Twin T-Networks circuits used in many legendary drum machines we developed a simple and straight forward 4 voice percussion module with frequency controls for each of its voices.

At each voice input there’s a gate to trigger converter so any input source is possible.
Audio inputs can also be used as an input, in this case and due to the nature of the gate to trigger converter, each voice can be used as very destructive filters.

The top 2 channels feature a higher frequency range, the bottom 2 channels feature a lower frequency range.

Features;

4 Voices each with:
Frequency control
Frequency Range Switch, Low/Mod/High
Trigger Input
Audio Output
Summing Mix output with Volume control

Specifications

• Power: 40mA +12V 40mA -12V

• Space: 4HP, 2,5cm deep
