Nano Modules

VCV Random - Nano Modules

VCV Random is the hardware version of a well-known classic from the VCV Rack fundamental library. A random CV generator with 4 types of randomness and a trigger



VCV Random - Eurorack Module

Nano Modules

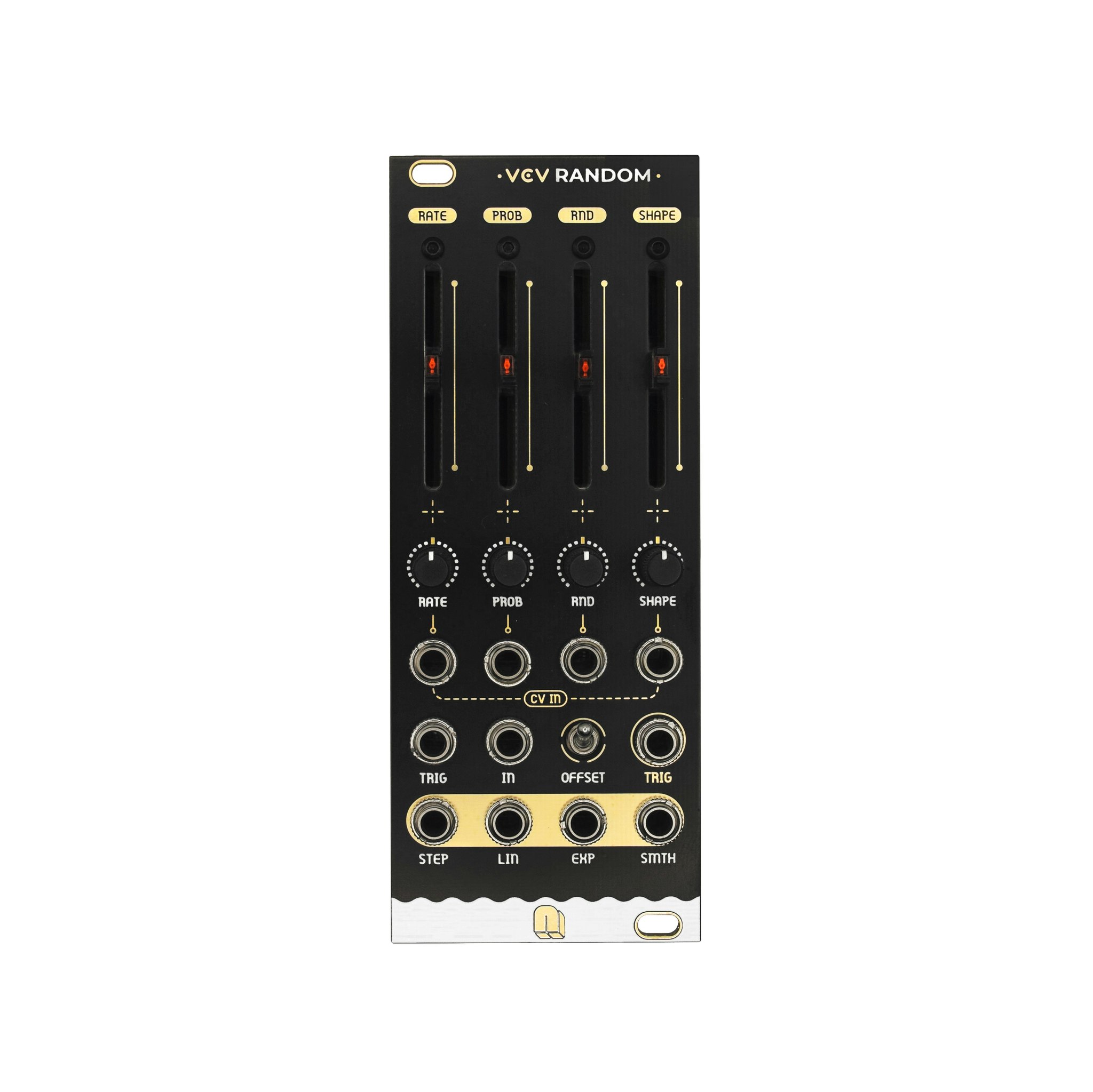

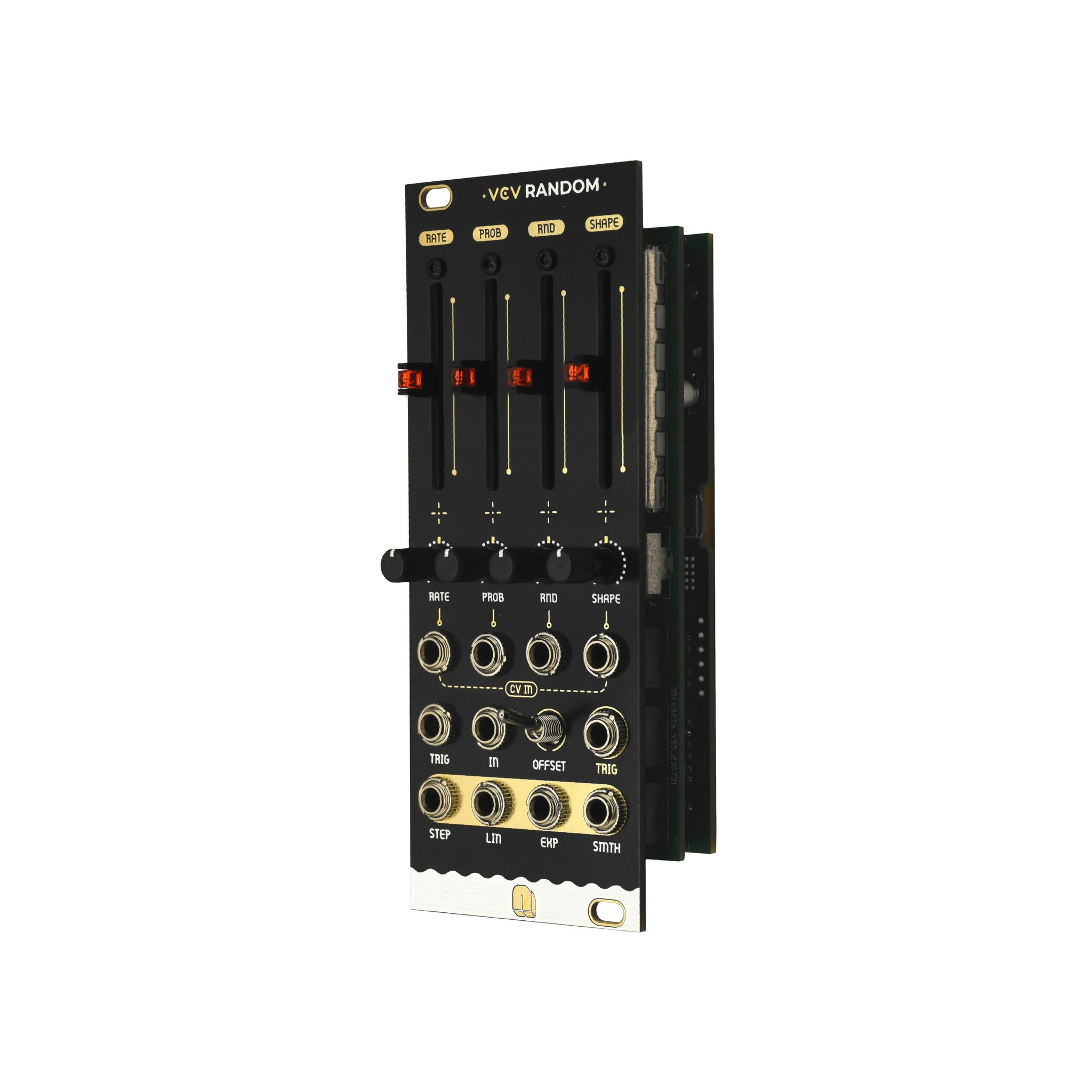

VCV Random is the hardware version of a well-known classic from the VCV Rack fundamental library. A random CV generator with 4 types of randomness and a triggerable sample-and-hold function.

Sliders allow you to set the internal clock tempo (RATE), shape the probability of triggering (PROB), blend old with new values (RND) and set the shape of all four random outputs (SHAPE).

The VCV Random has 4 function

  • RATE - Adjusts the internal clock’s tempo. Upon each clock trigger, the RATE slider light blinks, and there is a chance for the internal random source to generate a new value.
  • PROB - Sets the probability of generating a new random value each clock cycle. If one is generated, the PROB slider light blinks and a pulse is emitted from the TRIG output.
  • RND - Blends the previous value with a random one, in a proportion determined by the RND slider. It affects the range of the voltage output.
  • SHAPE - Controls the transition shape to the new random value across all four outputs.

Specifications

Dimensions 10HP – 50×128,5mm
Current 63 mA +12V / 11 mA -12V / 0 mA +5V
Input & Output Signals ±10V
Impedance Input 10k – Output 10k
Materials PCB and Panel – FR4 1,6mm
Depth 40mm including connectors (Skiff friendly)

Get to its technical features, functions and how it works. Quick Guide ↗
