Mordax Data PreOwned

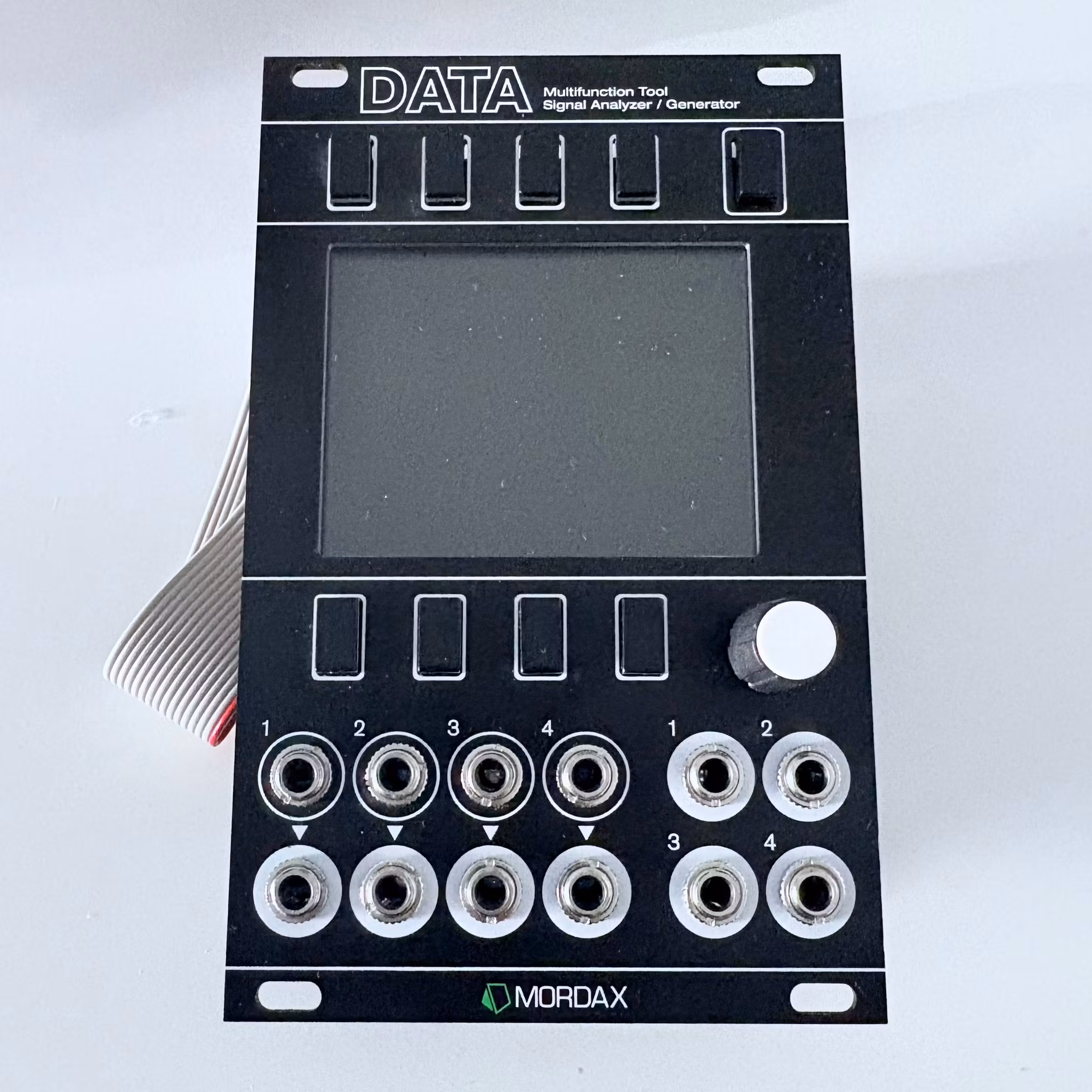

Mordax Data

Mordax Data is a multifunction tool for Eurorack modular systems.

• 16 HP (81.28mm width)

• 35mm approx. depth

• Full color, 2.8” (71mm) display, with crystal clear, scratch resistant window

• User upgradable firmware via included microSD card

• Oscilloscope, tuner, waveform generator, clock source/div/mult, spectral display, and more

• Input / Output:

  • 4 input jacks (+/-10V range), AC or DC coupled via on-screen control

  • 4 buffered through jacks, one for each input channel

  • 4 output jacks (+10 to -5V range), can be CV, audio, trigger or gate signals

• Power Consumption (average):

  • ~250mA +12V

  • ~60mA -12V
