SEOK PHASES

Phase Shifting Clock Divider

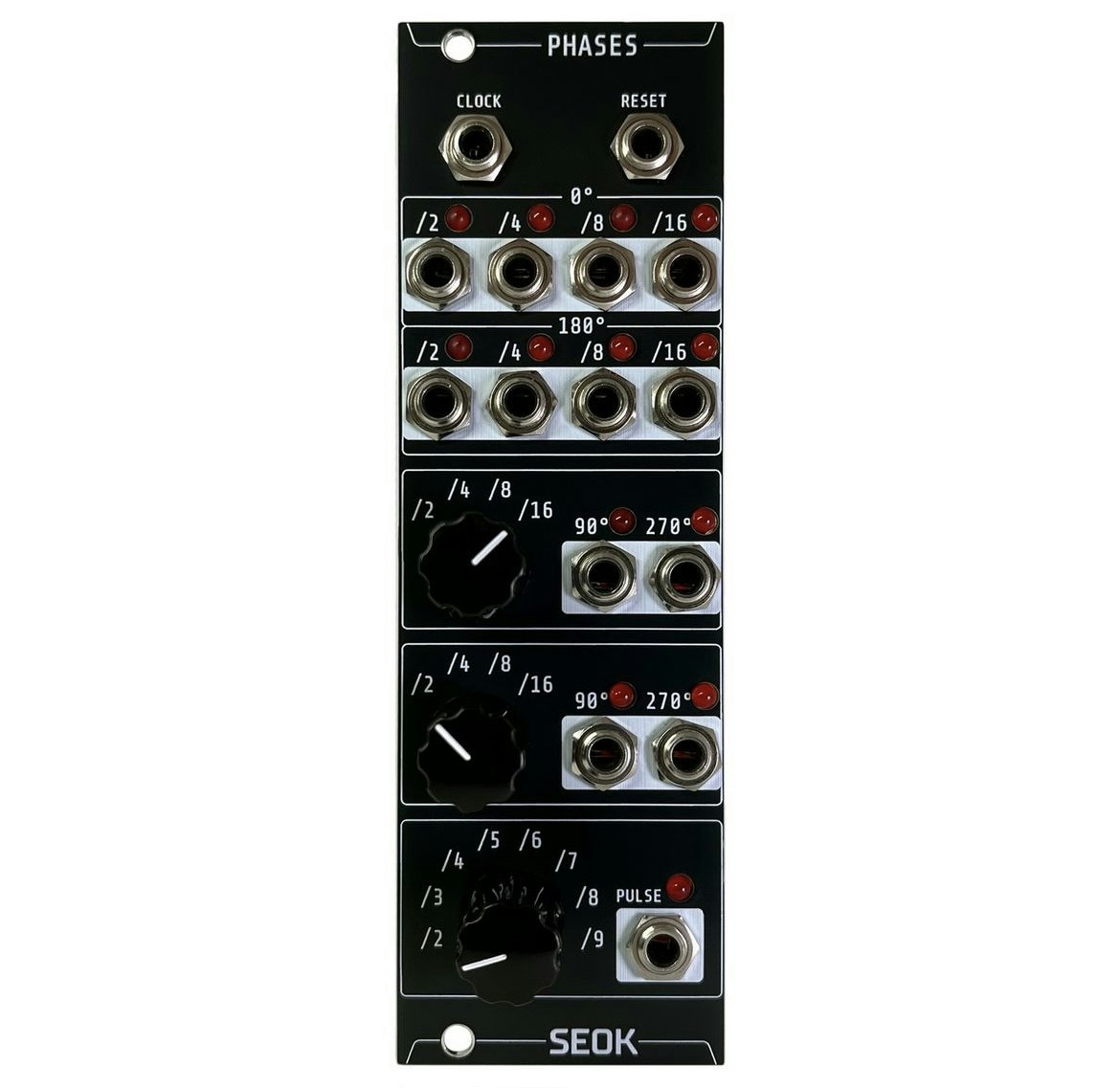

This is a special yet simple divider with four outputs for each division: 0, 90, 180, and 270 degrees, effectively shifting signals in the time domain.

The 0 and 180-degree outputs are always available via the upper outputs, while the 90 and 270-degree phases can be selected using two rotary switches.

At the bottom of the module, there’s an additional divider capable of handling more irregular divisions, though without phase shifting.

Specifications

Dimensions: Eurorack standard 8 hp
Depth: 28mm

Current Draw
+12v 21mA
-12v 4mA
+5v 0mA

Powercable and screws are always included.
