Bluebox Eurorack Edition - 1010music

PreOrder - Products on the way - Delivery 21-27 May

The Ultimate Mixer Meetup for all your Modules!

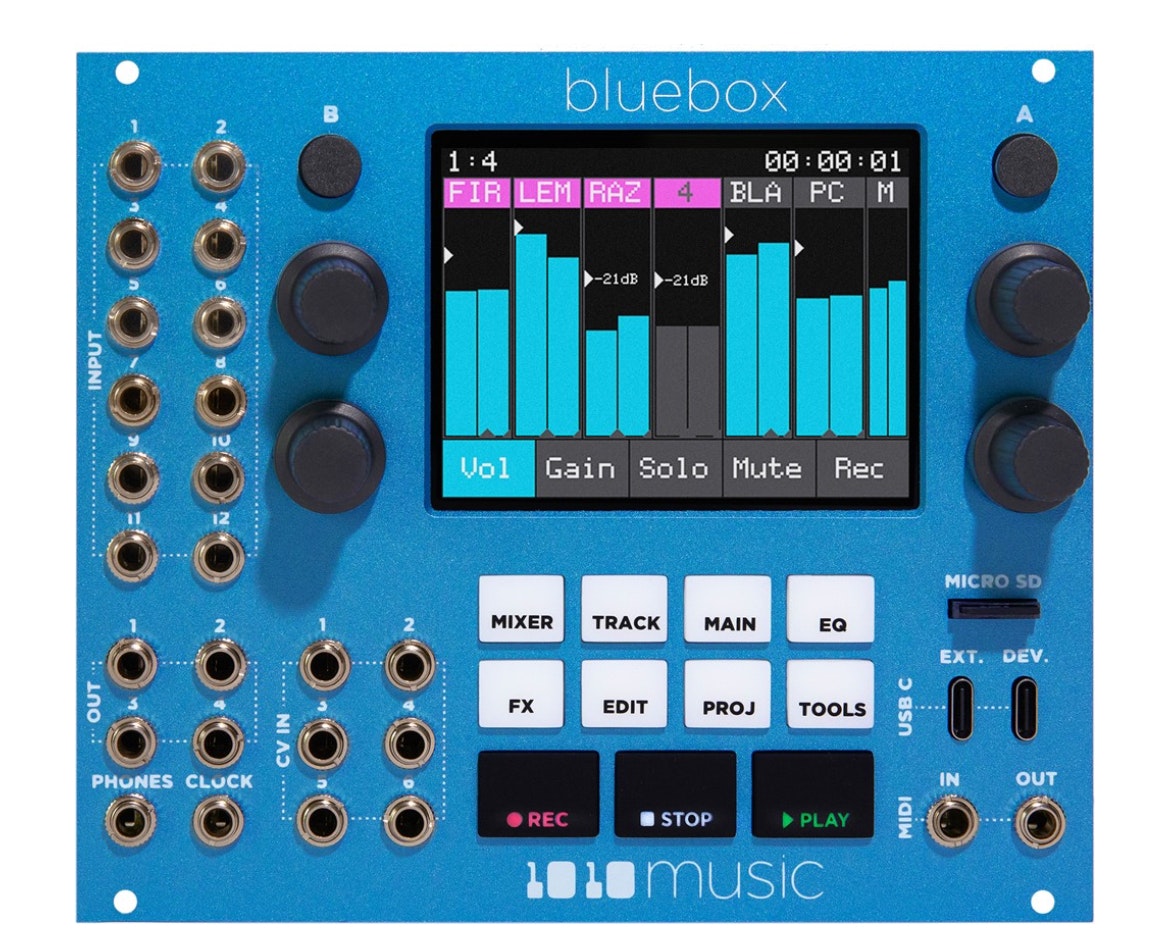

The bluebox Eurorack edition is the new Eurorack mixer with effects and multichannel recording/playback based on the award-winning bluebox desktop mixer.

Connect your eurorack, sampler, drum machine, and synthesizer outputs to 12 mono, 3.5 mm inputs and map them to 12 mono tracks or 6 stereo tracks – all with independent control for recording and playback. Connect your computer to the USB C port to send and receive two channels of audio.

Eurorack mixer with effects and multichannel recording/playback

• Mix 12 mono/6 stereo tracks of live or prerecorded sound
• 6 CV inputs for modulation and control
• Internal reverb and delay
• 4-band EQ per track
• USB-C for 2 channel audio
• MicroSD
• 30HP

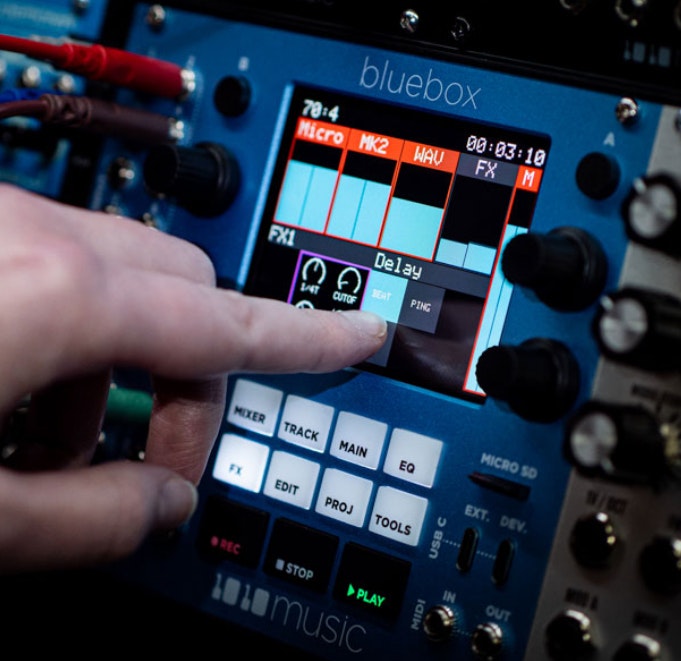

The bluebox Eurorack edition is the elegant way to get high-quality mixing, effects and integrated recording and playback all in one super-optimized 30 hp form factor. Like all 1010music products, it uses a touchscreen with knobs to let you quickly control volume, gain, 4 band parametric EQ, pan, reverb and delay effects, mute/solo and record/play functions for each track – all with a fast, fluid, intuitive workflow.

The bluebox Eurorack edition is the ultimate in compact mixing, effects, recording, and playback for Eurorack. Smack it in your rack and hit the road with a self-contained, electronic music powerhouse!

FEATURES

- Mix 12 mono/6 stereo tracks of live or prerecorded sound.
- Independently route each track to any combination of outputs:
     - 4 mono / 2 stereo outputs
     - Stereo headphone output
- 6 CV inputs for modulation and control – clock output
- TRS MIDI input and output
- USB-C for external MIDI controllers
- USB-C for 2 channel audio
- microSD to record/play hours of multi-track/stereo music as 48k, 24 bit WAVs and for firmware updates
- Ability to playback pre-recorded tracks while recording new ones
- Master control of the same mixer parameter across multiple tracks for faster mixes
- Touchscreen gestures and knobs to quickly and easily tweak parameters
- Four band EQ per track with Cut/Shelf/Parametric settings for each band
- Great Reverb and Delay effects with independent sends for each track
- A built-in global compressor to maximize loudness and glue your mix together
- Save and recall Project settings including all parameters for tracks, outputs, EQ and effects

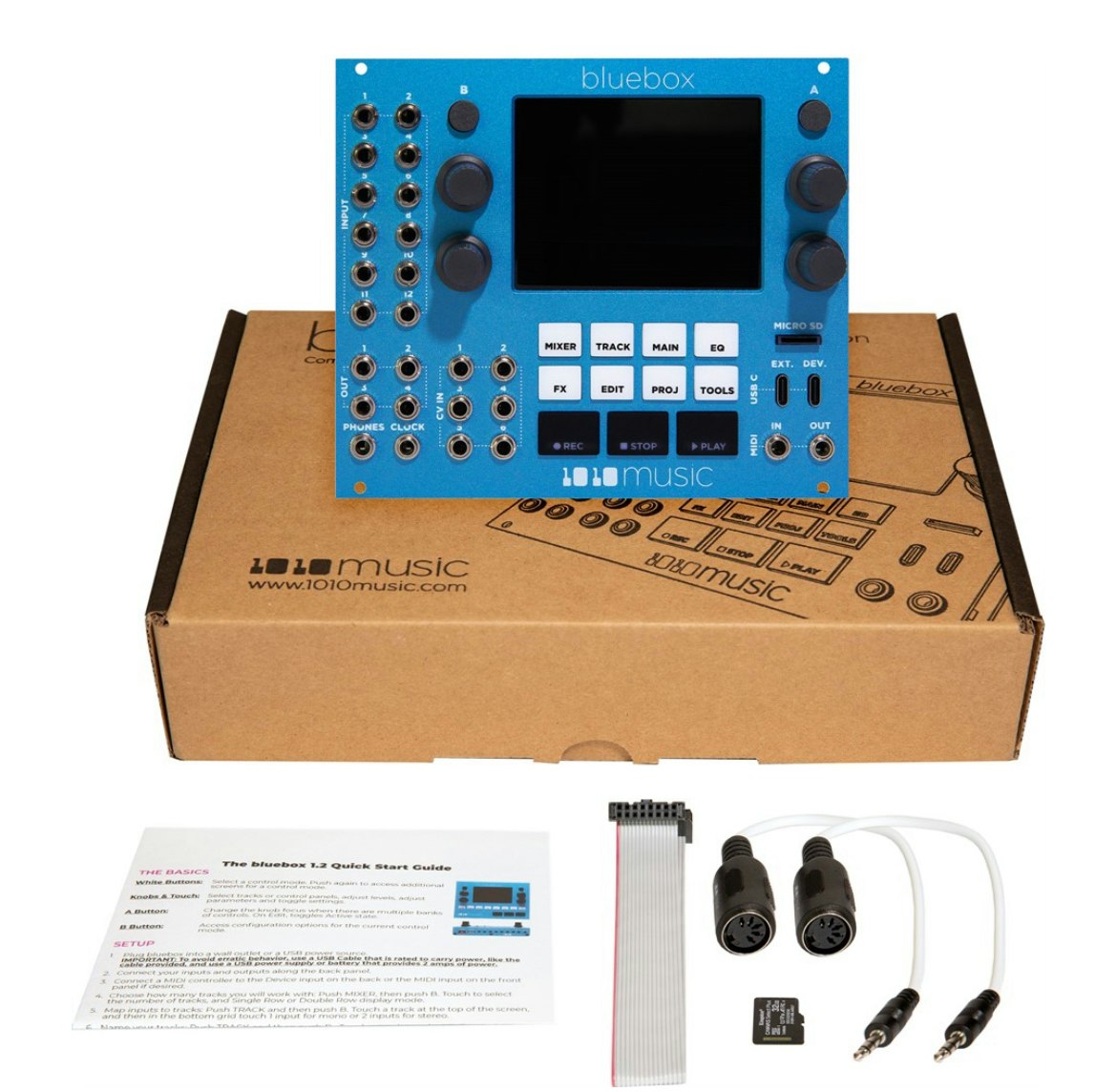

WHAT’S IN THE BOX

- a bluebox Eurorack edition 30 HP Eurorack module
- A microSD card with bluebox firmware and pre-loaded project files
- two Eurorack power cables
- a bluebox Eurorack edition Quick Start guide
- two MIDI Adapters
