DÉJÀ VU

• Fader voltage source
• Attenuator
• Attenuverter
• Crossfader
• Pre-Amplifier (up to 10x)
• Stereo line level to eurorack level booster
• Distortion/Saturator with bias
• Panner
• Stereo mixing
• External feedback mixer for effects
• Mixer (up to 4 channels)
• Unipolar to bipolar voltage converter
• Bipolar to unipolar voltage converter
• Combining triggers

Features

• Two channels of fader control with voltage/audio processing
• FADER and ADD inputs per channel
• FADER input is normalized to voltage


• Fader Modes:
  — Attenuvertor
  — Attenuator
  — Crossfader (between FADER and ADD)


• Fader gain: 1x, 2x or 10x (10x can be turned into 5X via back jumper)
• Fader per channel
• Green/Red light indication of channel polarity and voltage


• Cascading mixing of outputs (can be disabled via back jumper)

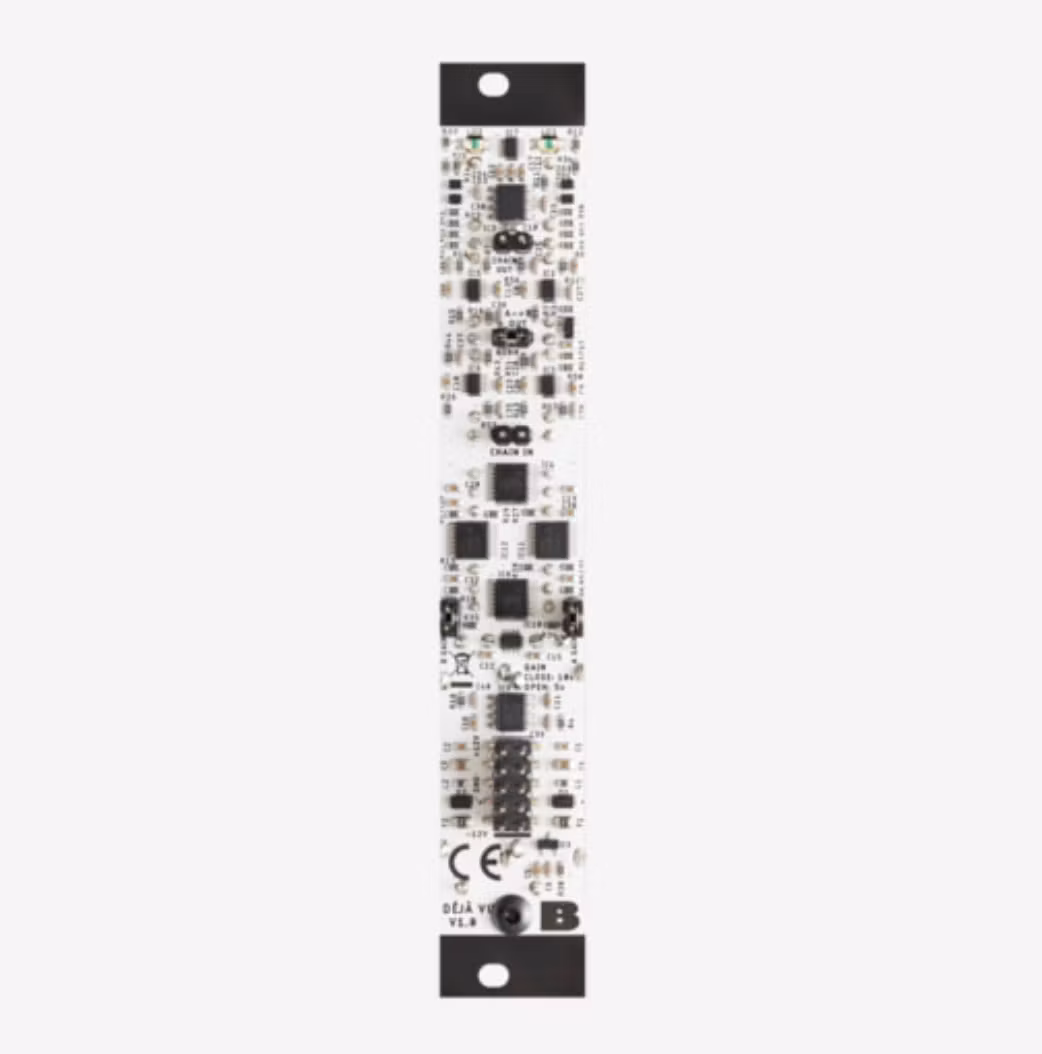

• Chainable via back jumpers

Technical details

• 4 HP
• PTC fuse and diode protected 10 pin power connector
• depth 30mm (with the power cable attached)
• current consumption: +12 V: <60 mA; -12 V: <60 mA
